Nyalakan Lampu Pakai Password, Keypad Arduino

Nyalakan Lampu Pakai Password, Keypad Arduino

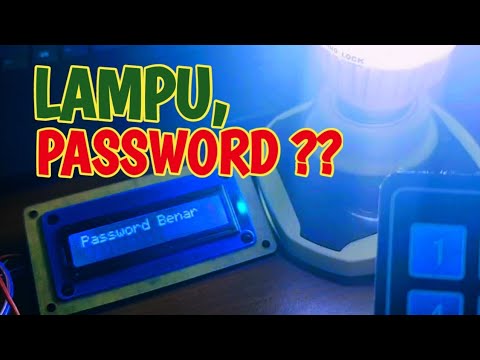

Video berikut adalah cara bagaimana membuat password untuk menyalakan lampu, lock door, televisi, kipas, Kunci Pintu, dan lain lain.

Untuk code silahkan copy paste script dibawah ini:

#include <LiquidCrystal_I2C.h>

LiquidCrystal_I2C lcd(0x27,16,2);

// Include Keypad library

#include <Keypad.h>

// Length of password + 1 for null character

#define Password_Length 8

// Character to hold password input

char Data[Password_Length];

// Password

char Master[Password_Length] = "123ABCD";

// Pin connected to lock relay input

int lockOutput = 13;

// Counter for character entries

byte data_count = 0;

// Character to hold key input

char customKey;

// Constants for row and column sizes

const byte ROWS = 4;

const byte COLS = 4;

// Array to represent keys on keypad

char hexaKeys[ROWS][COLS] = {

  {'1', '2', '3', 'A'},

  {'4', '5', '6', 'B'},

  {'7', '8', '9', 'C'},

  {'*', '0', '#', 'D'}

};

// Connections to Arduino

byte rowPins[ROWS] = {9, 8, 7, 6};

byte colPins[COLS] = {5, 4, 3, 2};

// Create keypad object

Keypad customKeypad = Keypad(makeKeymap(hexaKeys), rowPins, colPins, ROWS, COLS);

void setup() {

  // Setup LCD with backlight and initialize

  lcd.backlight();

  lcd.init();

  // Set lockOutput as an OUTPUT pin

  pinMode(lockOutput, OUTPUT);

// default bernilai LOW

  digitalWrite(lockOutput, HIGH);

}

void loop() {

  // Initialize LCD and print

  lcd.setCursor(0, 0);

  lcd.print("Masukan Password:");

  // Look for keypress

  customKey = customKeypad.getKey();

  if (customKey) {

    // Enter keypress into array and increment counter

    Data[data_count] = customKey;

    lcd.setCursor(data_count, 1);

    lcd.print(Data[data_count]);

    data_count++;

  }

  // See if we have reached the password length

  if (data_count == Password_Length - 1) {

    lcd.clear();

    if (!strcmp(Data, Master)) {

      // Password is correct

      lcd.print("Password Benar");

      // Turn on relay for 5 seconds

      digitalWrite(lockOutput, LOW);

      delay(5000);

      digitalWrite(lockOutput, HIGH);

    }

    else {

      // Password is incorrect

      lcd.print("Salah Password");

      delay(5000);

    }

    // Clear data and LCD display

    lcd.clear();

    clearData();

  }

}

void clearData() {

  // Go through array and clear data

  while (data_count != 0) {

    Data[data_count--] = 0;

  }

  return;

}
